Homemade Medium size Biogas Plant for Kitchen waste

Homemade Medium size Biogas Plant for Kitchen waste

Final Product of portable Biogas Plant

 I always searching new techniques to produce biogas from animal and kitchen organic waste at house level in urban area, mostly biogas digester in the world are floating dome and fixed dome type biogas digester, these plant need large space and large quantity of organic waste. It can not build in urban area, I found on internet some portable biogas plant like ARTI biogas  plant and GREENTECH biogas plant these plant work fine, I inspired by ARTI biogas plant design so decide to make my on digester similar as ARTI plant.

See ARTI Biogas Plant Diagram  source Pakistan Science Club forum

ARTI Biogas plant is very simple and useful biogas plant can be made by plastic, steel tank, and bricks ARTI biogas plant consist on two part 1st is digester tank 2nd is Gas older tank, Digester tank also called fermenter where fermentation of manure takes place and biogas produces. Digester tank is made by 1000 liter water tank and gas holder made by 750 liter plastic water tank. PVC pipe also use as inlet and outlet.
Construction of ARTI Biogas Plant step by step Video Portal
Here a links visit http://paksc.org/pk/biogas-plant-design/...-tank.html

When I  was arranging material of digester I thought alternative of gas holder tank because it cost and extra working for cutting etc, so I decide alternate of gas tank to Old or used Tyre tube of tractor or large tube of Tyre. In this storage system I got two benefits, first I saved 3000 Rp and 2nd gas can be transfer.
Here is Photos of Step by Step Digester construction I hope you will learn and try to make.

 Components of the Bio-gas Plant.

The main components of the biogas Digester are a digester tank (Water Tank), an inlet (PVC Pipe) for feeding the kitchen waste, gas storage tank (Tyre Tube), an outlet for the digested slurry and the gas Pipe.

Material List Of Biogas Plant.

  1. 700 liter water Tank ( used as Digester Tank)
  2. 3 Inch Diameter and 3 fit in length PVC pipe (to be used as inlet pipe)
  3. 3 Inch Diameter and 2 fit in length PVC pipe (to be used as out let pipe)
  4. PVC Pipe adapter (to be used as funnel).
  5. Iron nipple
  6. Two PVC Pipe Caps
  7. Two Elbow
  8. Plastic pipe 5 ft (to be used for delivery of gas)
  9. Gas Valve
  10. Supper glue (to be used for fixing of pipe)
  11. Sand

Tools required

 A hack saw blade for cutting the pipes and a soldering iron cutting holes on the tank

Step 1

Here are some photos of biogas plant tank and components.
All Components of Homemade portable Biogas digester

700 liter water tank to be used as Digester Tank
700 liter water tank to be used as Digester Tank

700 liter water tank and other  Material for making of Plant
700 liter water tank and other  Material for making of Plant
700 liter water tank and other  Material for making of Plant
Elbow, PVC Adopter Pipe, Glue, Valve

Step 2 Making of inlet Pipe.

I take PVC pipe and put on side of tank and make circle with the help of pencil it should be equal to PVC pipe diameter.
PIPe and Tank

Drawing a circle around PVC pipe on top side of the water tank

Drawing a circle around PVC pipe on one side of the water tank
Circle showing on top side of tank

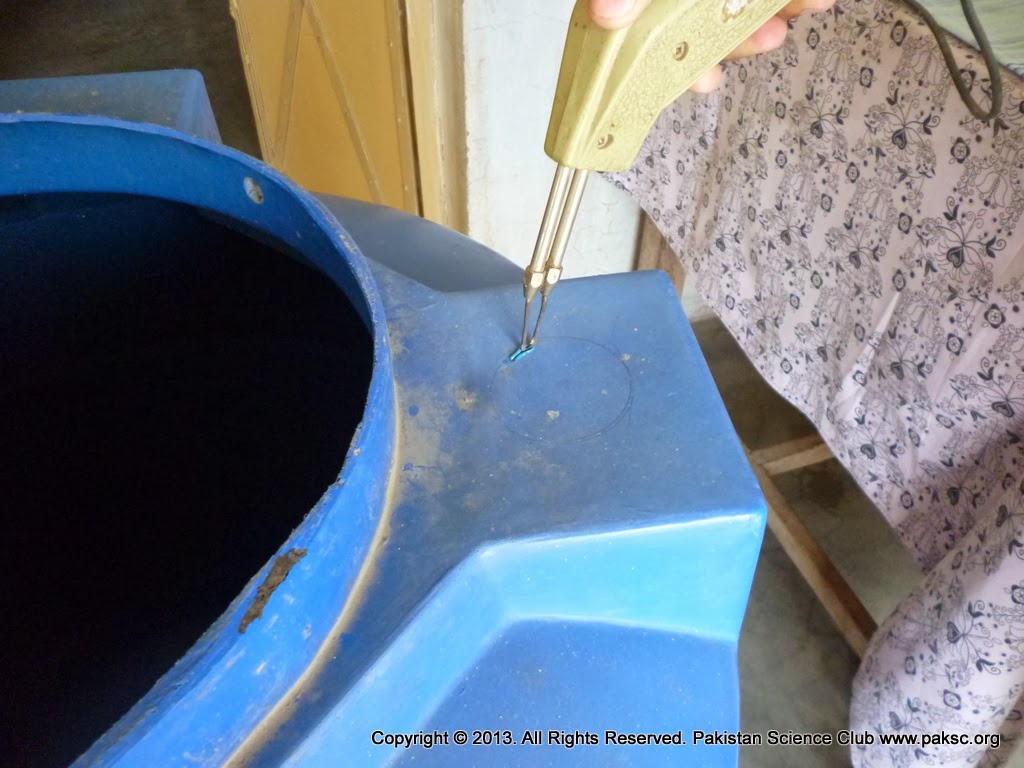

making of hole with help of soldiering Iron
making of hole with help of soldiering Iron

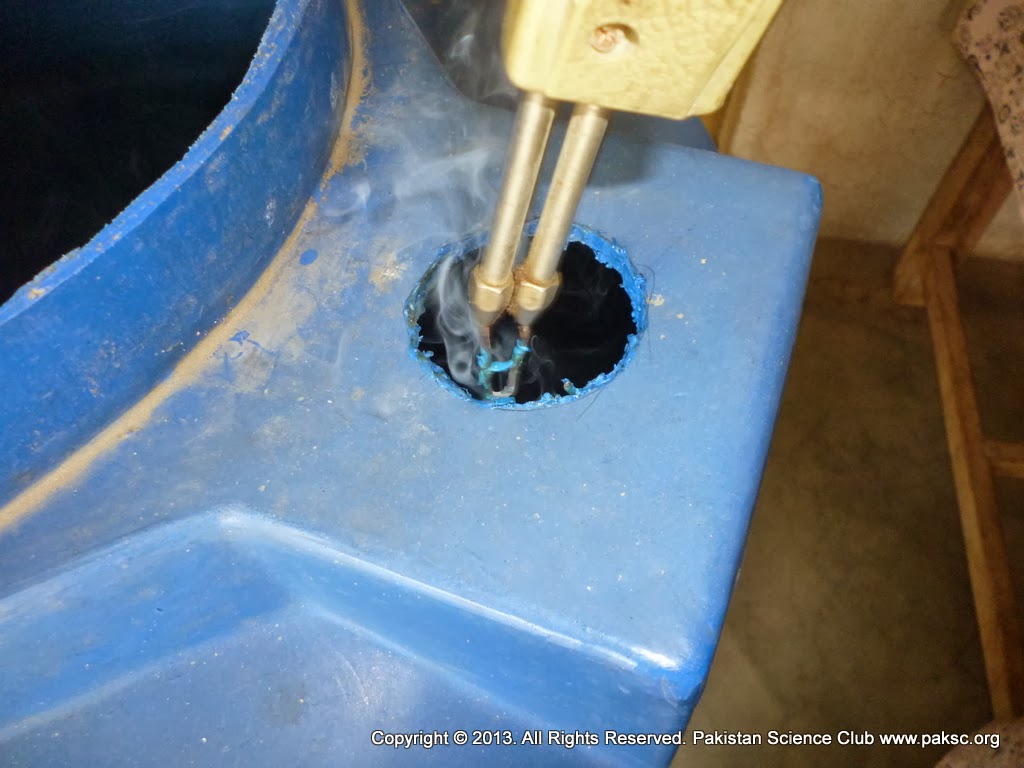

making of hole with help of soldiering Iron almost done

making of hole with help of soldiering Iron
making of hole with help of soldiering Iron



fitting of pipe inside the hole

Inlet PVC pipe fitted it shouldn't attach with bottom

Cut the extra length of PVC pipe (should be equal to the tank cap)
making of hole with help of soldiering Iron side of the tank for outlet pipe.

PVC Pipe Adopter fix on Pipe

Inlet pipe and outlet pipe fitted in tank

fix the elbow with outlet pipe



Make hole on cap of water tank and fix the iron nipple in it

Step 3


sealed the joint of pipe with tank by supper glue and sand

Inlet system of biogas plant

Final Product of portable Biogas Plant
(Note: Tyre tube not showing in this post it will be show on an other post with working of plant ) PVC cap will use at inlet and outlet pipe to hold back pressure of gas.

After two or three hours of wait to allowing all joints to get cured and become leak proof

Feeding Of Digester Tank

Initially, cow-dung mixed (with the ration of 50 % water and 50 % dung )will be fed in to the system, which anaerobically bacteria will start the gas formation . After a week gas tube filled with biogas, but this gas not burnable because of the quantity of methane gas has very low and other gases like carbon dioxide nitrogen and sulphide gas. afterward, you can use food waste, decomposable organic material and kitchen waste it should be diluted with water.
 You can get further information on kitchen waste based  Bio-gas plant at Pakistan Science Club's website www.paksc.org/pk/biogas-plant-design

See Also:

Biogas plant photos Pakistan
Movable dome plant This is old type of biogas plant name is movable dome (Gas Tank)plan, this model is very common and successful in Pak...
Biogas plant step by step in photos Download PDF Here is PDF format download a biogas digester construction step by
